A tunnel dryer blows hot air to take out water from things as they go through a long chamber. This drying process makes products better and helps them last longer. Many big food factories use tunnel dryers to stop germs from growing and to make things lighter, which lowers shipping costs. Tunnel dryers also help with handling and storing by giving a controlled place to dry things. Industries like pharmaceuticals, chemicals, and textiles use this technology to keep their products safe and steady.
Key Takeaways
Tunnel dryers use hot air to dry products all the time. This makes drying faster and more even than batch dryers. They save energy by using heat again. They also use special heating like infrared and solar power. These methods help keep the product safe and good. Tunnel dryers can dry a lot of products at once. This makes them great for big factories in food, medicine, and chemicals. The machines have many parts to control heat, airflow, and humidity. This helps make drying safe, efficient, and even. Picking the right tunnel dryer means thinking about size, airflow, and heat control. You should also think about how easy it is to clean and how much energy it saves. This helps you find the best one for your needs.
What Is a Tunnel Dryer?
A tunnel dryer is an industrial drying system designed to dehydrate materials by passing them through a heated tunnel. This continuous drying process is efficient for large-scale production and diverse applications.
Tunnel Dryer Definition
A tunnel dryer is a big machine used in factories. It takes water out of products as they move through a long, closed space. Hot air or gas dries items that sit on trays or racks. The trays ride on trolleys or belts and go through different parts of the tunnel. Each part has its own temperature and airflow to dry things evenly. Many factories use a tunnel dryer diagram to help plan how to set up and run these machines.
Tunnel dryers are different from other dryers because they work all the time. Batch dryers only dry one group at a time, but tunnel dryers keep things moving. This makes them faster and better for making lots of products. The table below shows how tunnel dryers compare to other dryers:
Dryer Type | Design Features | Operation Characteristics | Suitable Materials/Applications |
|---|---|---|---|
Tunnel Dryer | Trays on trolleys move through a drying tunnel | Products move through a tunnel with hot air or gas; air can flow in different ways; countercurrent works best | Things that can break or need slow drying; car parts, electronics, food |
Rotary Dryer | A slanted, turning metal drum with pieces inside | Material tumbles inside the drum; hot air goes in; can heat directly or indirectly | Small, dry things like salt, minerals, grains, nuts, animal food |
Fluidized Bed Dryer | A container where hot air lifts and moves particles | Hot air lifts particles to dry them faster; air can go up or sideways; can be batch or continuous | Powders and small grains like cereal and grain |
Vacuum Dryer | A closed chamber with a vacuum and heated outside | Heats under vacuum to dry faster; good for things that can’t take heat or air | Things that are sensitive to heat and air; sometimes used with filters |
A tunnel dryer diagram shows where trays go, how air moves, and where heat is. This picture helps workers and engineers see how the system works and make it better.
Key Features
Tunnel dryers have many features that help factories:
Trays move through the tunnel all the time, not like batch dryers that stop and start.
They can dry a lot of things at once, which is good for big jobs.
Air can move in different ways, like with or against the trays. Counter-current airflow saves the most energy and dries best.
Machines or trucks move trays, so tunnel dryers can work with other machines easily.
Safety features keep people and products safe. The tunnel is closed, so dust does not cause sparks. Direct drive systems make less noise and need less fixing. Fire-proof materials and tight seals make them safer and save energy.
New tunnel dryers use things like solar air heaters, UV-proof materials, and special materials that store heat. These help save energy and keep products good. Forced convection systems dry things much faster than drying in the sun. They also help keep food colorful and healthy.
Most tunnel dryers in factories are very big. For example, one might be 210 inches long, 60 inches wide, and 74 inches tall. They can hold up to 1,595 square feet of trays, use strong fans, and dry hundreds of trays at once.
Note: Engineers use computer programs and 3D models to design tunnel dryers. These tools help control air and heat, making drying safer and better.
Tunnel dryers are important in many industries. They dry things that need gentle and even drying, like food, electronics, and chemicals. Their design lets them handle lots of products and still keep control, so they are a top pick for big jobs.
How Tunnel Dryers Work
Tunnel dryers operate by moving products through a long, heated chamber where hot air circulates to remove moisture. This process ensures efficient and consistent drying.
Drying Process
Tunnel dryers dry things by removing water in steps. The tunnel dryer working principle uses hot air and airflow to dry things evenly. Here is how the process works:
Material Feeding: Workers put items on trolleys or belts. The system moves these into the tunnel. The entry door closes to keep the air inside.
Air Circulation: Fans blow hot air through the tunnel. Air can move in different ways, like against or with the trays.
Heating: The system heats the air. It can use hot air, microwave, radio waves, or infrared. The type depends on what is being dried and how fast it needs to dry.
Drying Process: As items move through the tunnel, they meet the hot air or energy. This makes sure everything dries the same way.
Material Discharge: When drying is done, the exit door opens. Workers take out the dried items for the next step.
Note: The tunnel dryer working principle lets workers control heat and air. This helps keep products good and the same every time.
Tunnel dryers can have problems. Sometimes chemicals are not added right. Bad water or broken machines can also cause trouble. Checking pumps, water, and fans often helps things work well. Changing when and how drying agents are used can help too. If problems do not go away, experts can help, but sometimes it is hard to find the right help.
Continuous Tunnel Dryers
Continuous tunnel dryers move items through the tunnel all the time. This keeps the drying steady. Batch tunnel dryers dry one group at a time. The table below shows how continuous and batch dryers are different:
Aspect | Tunnel Dryer (Continuous) | Batch Dryer (Discontinuous) |
|---|---|---|
Operation Principle | Items move all the time on a belt in a place with steady heat and air. This gives even drying. | Dries one group at a time. Each group is loaded, dried, and taken out before the next group starts. |
Drying Capacity | Can dry a lot because items keep moving. Good for big factories. | Can only dry a small amount each time. Good for small or special jobs. |
Energy Efficiency | Saves more energy because it does not stop and start. Uses heat again to save power. | Uses more energy because it heats up from cold each time. |
Product Quality | Dries things evenly because the air and heat stay the same. | Can change drying for each group, which helps with special needs. |
Maintenance & Cleaning | Needs regular checks on belts and fans. Can plan repairs when not busy. | Easier to clean after each group. Stopping and starting can wear out parts. |
Cost | Costs more at first but saves money later if drying a lot. | Cheaper to buy but may cost more to run over time. |
Continuous tunnel dryers are best for big jobs that need to dry a lot and save energy. They keep air and heat steady, so things dry the same way each time. Batch tunnel dryers are better for small or special jobs, but they use more energy and need cleaning more often.
Advanced Heating Methods
New tunnel dryers use special ways to heat things. These ways help dry faster, save energy, and keep products good. Some of these ways are microwave, radio waves, infrared, and solar power. Each way helps hot air dryers work better.
Infrared Heating: Infrared heats water in the product right away. This makes drying faster. Using infrared with hot air can use up to 245% less energy than just hot air. It also helps food keep its color and vitamins.
Microwave and Radio Frequency Heating: These heat things from the inside and outside. This makes drying quicker and more even. Microwave tunnel dryers heat up fast, save energy, and protect products from heat damage.
Carbon Fiber Film Heaters (CFFHs): These heaters warm things up fast and evenly. This makes products better and saves up to 32% more energy.
Hybrid and Solar Drying: Using infrared and solar together dries things faster and makes them better. Mixing microwave, infrared, and ultrasound can cut non-renewable energy use by up to 80%. This helps keep the air clean and lowers pollution.
Tip: The heating method in tunnel dryers changes how fast things dry and how good they are. Direct-fired and oil-heated dryers work faster and better than steam dryers. But solar tunnel dryers can have uneven heat and wetness, so they need careful control.
These new heating ways help tunnel dryers work for many jobs. They dry things faster and use less energy while keeping products good. By using these methods and controlling air, tunnel dryers are still the best for drying in factories.

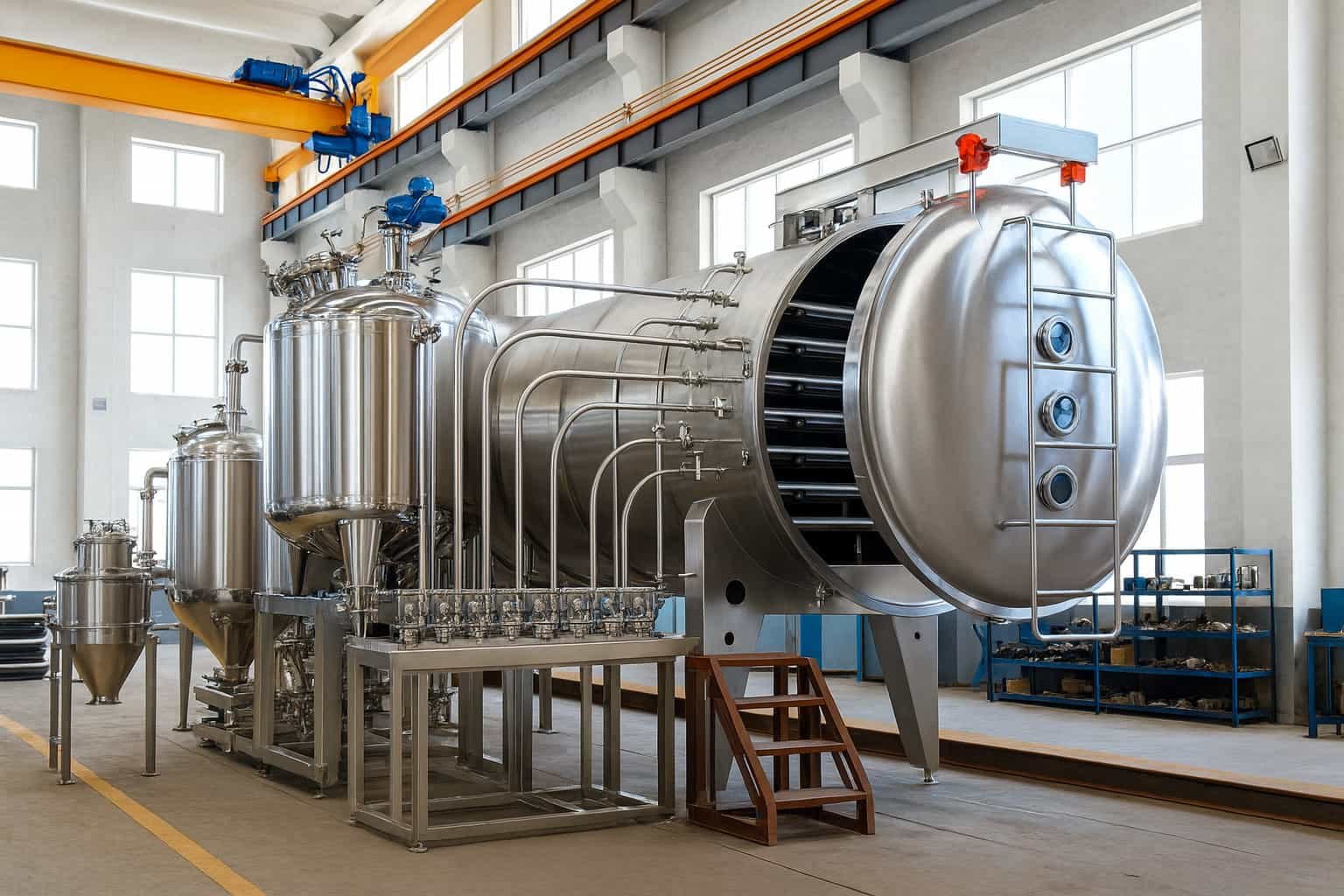

What Are the Main Components of a Tunnel Dryer?
A tunnel dryer primarily consists of a drying chamber, a conveyor system, heating elements, and ventilation fans. These components work together to efficiently remove moisture from products as they move through the tunnel.
Main Parts
A tunnel dryer has many important parts that work together. Each part has its own job to help dry things well. Here are the main parts:
Conveyor Belt System: This moves items through the tunnel at a steady speed. It keeps things spaced out and makes sure they get the same amount of heat.
Heat Transfer Mechanism: Heating parts or steam pipes make the heat needed to dry things.
Airflow Control: Fans and ducts move air around the tunnel. This helps spread heat everywhere and stops hot or cold spots.
Humidity Regulation: Sensors and vents keep the air inside dry. This stops water from building up and helps things dry faster.
Adjustable Parameters: Workers can change the speed, heat, and airflow to fit what is being dried.
Recirculation System: The system uses the same air again and heats it up. This saves energy and keeps drying the same.
Preheating Zone: This area warms things up before they go into the main drying part.
Drying Chamber: This is where most of the drying happens with set heat and airflow.
Moisture Extraction: Vents or fans take out wet air from the tunnel.
Cooling Zone: This part cools things down slowly to keep them good.
Exhaust System: It takes out wet air or collects water to use again.
Workers use a touchscreen to watch and change all these parts. Computers and remote controls help keep things safe and working well.
Airflow and Temperature Control
Good airflow and heat control are needed for even drying in a tunnel dryer. The tunnel is long and has thick walls to keep heat in. It is split into zones, and each zone can have its own heat setting. This lets workers pick the best way to dry each thing.
Fans push air through the tunnel to keep it moving the same everywhere.
Thick walls stop heat from getting out, so less energy is used.
Nozzles and air paths can be changed to send air to every spot, so no place is missed.
Dampers and sensors change air and heat as needed right away.
Workers can set the speed and heat for each zone on a touchscreen.
The system can use hot air, infrared, or microwave heat to fit what is being dried.
With all these parts, the tunnel dryer can dry lots of things well and at the same time.

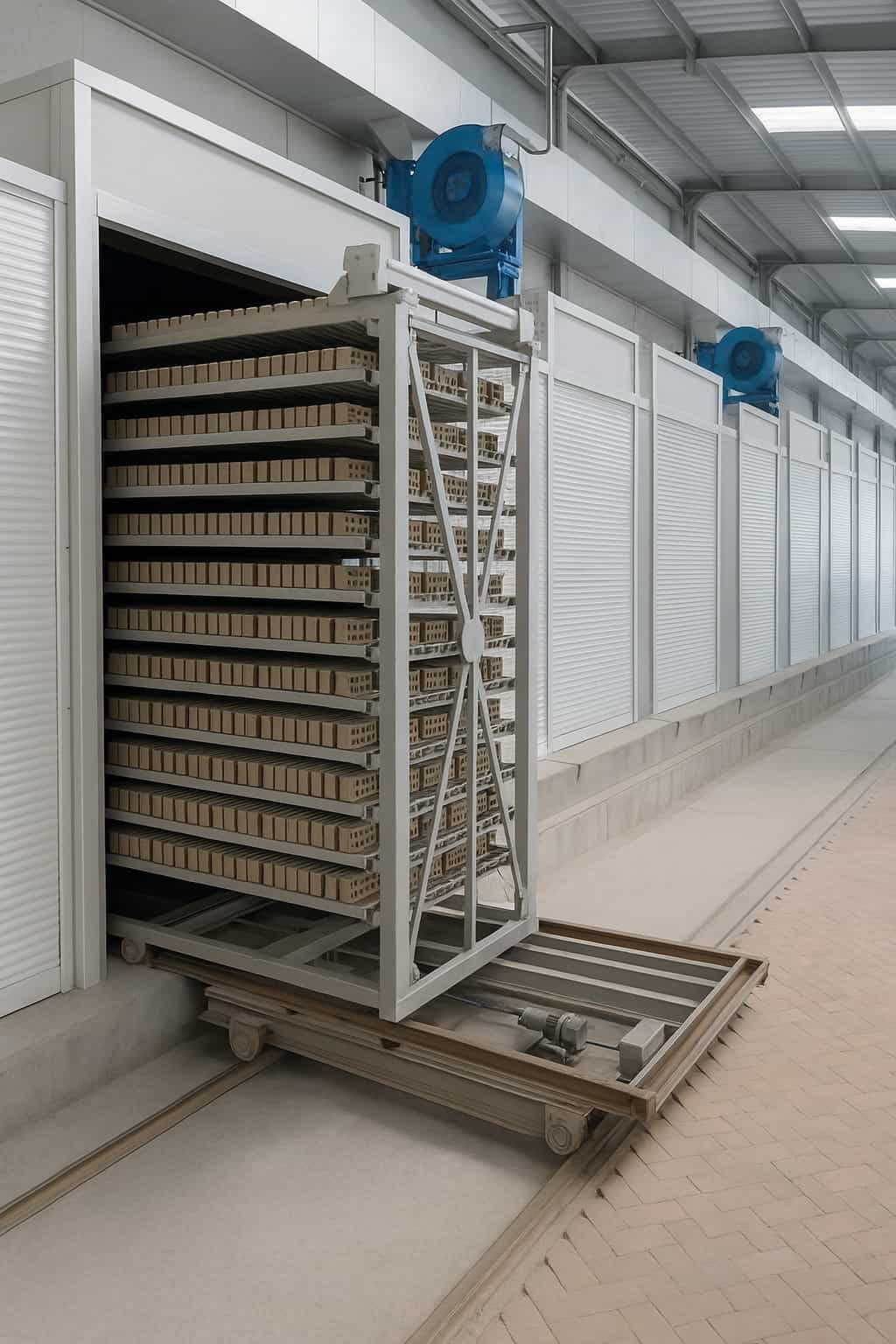

What Are the Advantages of Tunnel Dryers?
Tunnel dryers offer several advantages, including high efficiency, consistent product quality, and scalability. These dryers are particularly effective for large-scale production, as they provide uniform drying and can handle a variety of materials.
Efficiency
Tunnel dryers work very well in factories. They run all the time, so products keep moving. This helps take out water evenly and keeps quality the same. Workers can change speed, heat, and air for each part. This makes it easy to dry different things. Many factories use tunnel dryers because they can dry a lot at once and need less work from people. Smart tools like IoT and data help make drying even better. These new tools help companies follow rules and work better.
Energy Savings
Saving energy is a big reason to use tunnel dryers. Some dryers use special systems to catch heat from the air that leaves. This can cut energy bills by 20-25%. Solar and hybrid tunnel dryers use less energy than old dryers. They can save 37% to 54% more energy. These dryers also make less CO2, which is good for the planet. Some solar tunnel dryers use no regular energy at all. This means no carbon is made. Companies save money and can get rewards for using less energy. Using these dryers helps companies spend less and follow clean energy rules.
Tunnel dryers with heat recovery save money on energy.
Solar and hybrid dryers use green energy.
Less CO2 helps the earth and meets rules.
Money rewards help companies pick green dryers.
High Capacity
Tunnel dryers are great for drying lots of things at once. They move products through the tunnel without stopping. This is good for big jobs. Batch dryers work in steps and are better for small jobs. Tunnel dryers can dry more things faster. As more people want green and energy-saving dryers, tunnel dryers are used more in food, medicine, and chemical factories. They keep drying even and work well with big loads, so many companies choose them today.

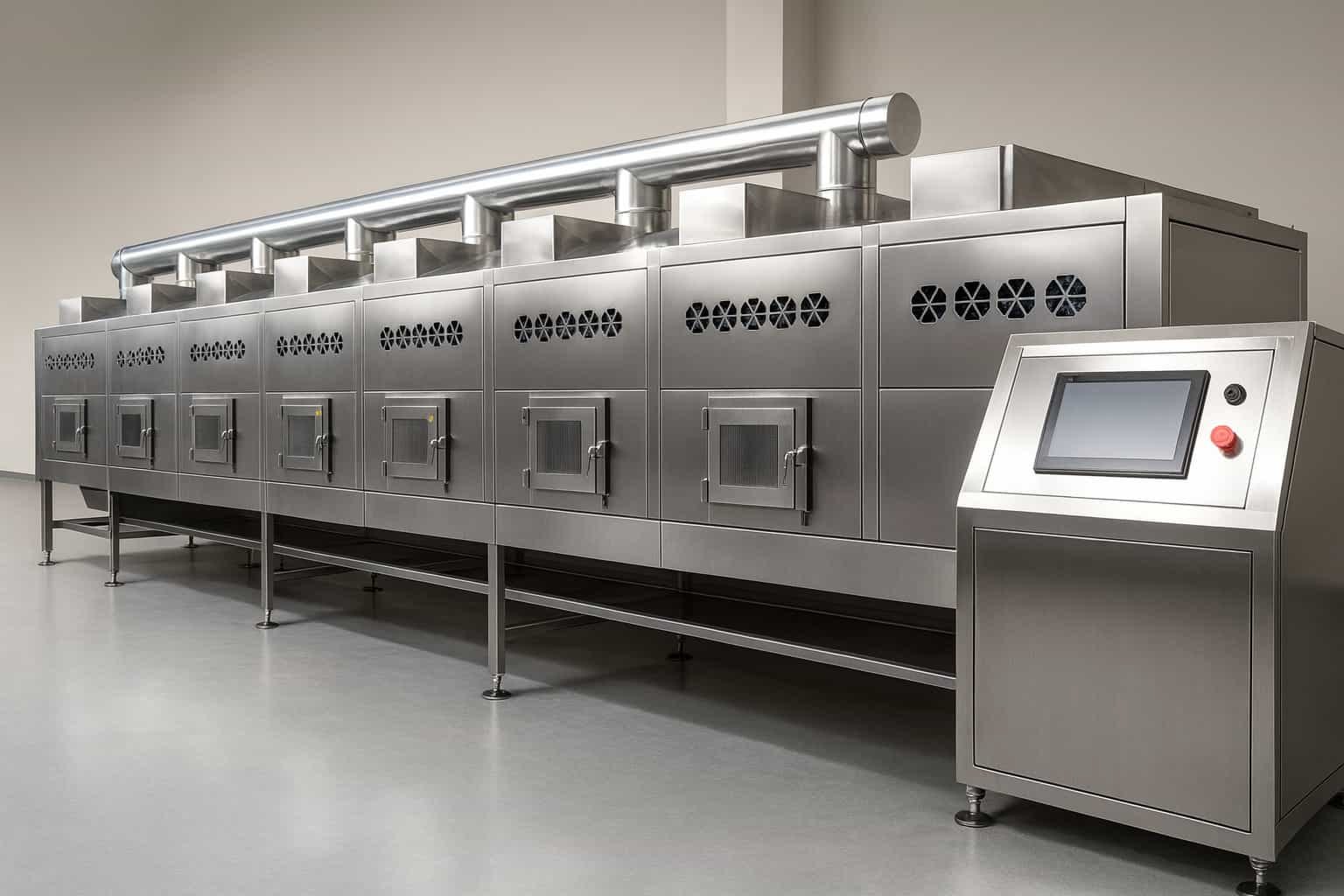

What Are the Applications of Tunnel Dryers?
Tunnel dryers are primarily used for drying large quantities of products continuously. They are highly efficient for industries such as food processing, pharmaceuticals, and textiles.
Food Processing
Tunnel dryers are very important in food factories. They dry fruits and vegetables to take out water. This stops germs from growing and helps food last longer. Drying with tunnel dryers keeps food healthy and stops it from turning brown. It also makes food lighter, so shipping is easier and cheaper. Tunnel dryers help keep food safe by lowering water so bad bacteria cannot grow. They are also used to dry meat and seafood. This keeps these foods safe and good to eat.
Rules from the FDA and cGMP tell workers how to use tunnel dryers in food factories. These rules help keep food clean and safe.
Pharmaceuticals
Pharmaceutical companies use tunnel dryers to dry medicine ingredients and finished pills. Trays with softgel capsules move through the tunnel. The tunnel keeps the heat, air, and wetness the same. This helps the capsules get the right feel and shape. Microwave tunnel dryers make drying faster for tablets and medicine powders. They heat everything evenly to keep the medicine strong and safe. Careful control of the tunnel keeps the medicine good and all the same.
Certifications like FDA, cGMP, and CE Marking show that the tunnel dryers are safe and follow the rules in medicine factories.
Chemicals and Printing
Tunnel dryers are used a lot in chemical and printing factories. They dry things fast for printing and help dry coatings and lacquers. The table below shows what products use tunnel dryers:
Dryer Type | Role in Industry | Specific Products Benefited |
|---|---|---|
Tunnel Dryer | Continuous drying for high-speed printing | Printed materials, lacquers, UV coatings |
Infrared tunnel dryers dry stones before chemicals are added.
They dry containers, printed items, and painted things.
Tunnel dryers also cool and smooth shiny lacquers before UV light is used.
Other Uses
Tunnel dryers are used in many other places too. Factories use them to dry crates, trays, and totes quickly. They can work with different speeds and many kinds of products. Tunnel dryers can be used in small or big factories. They are flexible and help many industries with their drying needs.
A tunnel dryer dries lots of things quickly and works well for many businesses. Companies like it because it saves energy and can dry many items at once. When picking a tunnel dryer, they should think about its shape, how air moves, how easy it is to clean, and how well it controls heat. Testing the dryer first helps make sure it fits the product. Experts say it is smart to ask manufacturers or specialists for help.
Think about what kind of dryer you need and how big it should be.
Make sure you can set and control the heat.
Look at how easy it is to clean and fix.
Compare the price now with how much you will save later.
If your job is tricky, talking to a pro helps you get the best dryer for your needs.
FAQ
What products can a tunnel dryer handle?
A tunnel dryer dries many things like food, medicine, and chemicals. It also dries printed items. Factories use it for fruits, vegetables, tablets, and coatings. The machine is good for things that need gentle drying. It dries everything evenly.
How does a tunnel dryer save energy?
Tunnel dryers have systems that reuse heat. They also blow hot air around again. Some use solar or hybrid power to work. These things help use less energy. Companies can save money with these dryers.
Is a tunnel dryer easy to clean and maintain?
Most tunnel dryers have smooth parts and easy panels. Workers can clean and check them fast. Doing regular checks keeps the dryer working well. This also helps the machine last longer.
Can a tunnel dryer be customized for different products?
Manufacturers can change the tunnel’s length, airflow, and heat. This helps companies dry many kinds of things. Custom features let them meet special drying needs.
What safety features do tunnel dryers include?
Tunnel dryers use fireproof materials and tight seals. They have systems that shut off by themselves. Sensors check for too much heat or bad airflow. These things keep workers and products safe.
